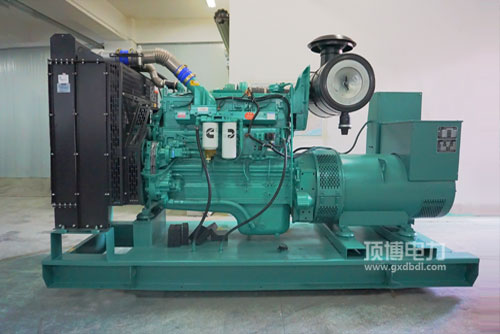

224-310KW康明斯发电用发动机可靠性高：高强度合金铸造缸体、可锻铸铁(FCD) 活塞，刚性更好，降低振动和噪声，提高了发动机适应更高的爆发压力。

High reliability: intensified alloy casting cylinder and Ferrous Cast Ductile (FCD) piston provide engine a better rigidity performance and lower vibration & noise, and also make the engine adapt to higher explosion pressure.

康明斯火力发电用启倾向燃料实惠性好: 现代化的燃料管理操作体系，具有的STC、ESTC 分类管理操作体系，特殊性设汁的活塞杆上方一氧化碳焚烧仓，高压变压器喷洒燃料，有力地雾化吸入，一氧化碳焚烧有力地。

Good fuel economy: Advanced fuel control system, unique STC, ESTC step control system, specilly-designed piston topchamber and high pressure fuel injection lead to an excellent fuel consumption rate and emission performance of engine.

康明斯带发电用汽车发倾向瞬态使用性能优等: 完满的汽车发倾向整体风格设计，紧密配合康明斯现代感的EFC系统软件，管理控制精性强，异常周期快。

Excellent transient performance: perfect overall engine design with unique Cummins EFC system, high precision on control and quick response time.

康明斯生产发电用打火机升工作效率高: 产品 设汁紧身.样貌部置有效，使用市场平稳。High lift power: Integrated and compact design, reasonable layout and smooth operation.

电喷外形 QSNT. QSK19. QSK38. QSK50满足了中国人非村道3.时候及北美地区Tier2. Tier 3废气排放标准条件。

Electric fuel injection engines (QSNT,QSK19,QSK38,QSK50) meet the Tier3 emission regulations for China non-road vehicles and Tier2 & Tier3 emission regulations of North America.

零维修工具必须性好， 汽车发倾向工作及运营维护检修生活便利，资金低。Good availbility of spare parts, smooth engine operation, convenient engine maintenance and low cost.

发动机规格Engine Specifications

输出功率领域 Power Range   224-310KW连接结构 Type   直列/六缸/四冲程/四气门  In-ine/6-Cylinder/4-Stroke/4-Valve缸径x冲程 BoreX Stroke  125X 147mm排量 Displacement   11L外表尺寸大小 Dimension  长X宽X高(LXWX H) 1360 x 833X 1068 mm净品质 Dry Weight   940kg

224-310KW康明斯发电站用起主观因素的特质：密度小， 降低变高， 防雨百叶窗气流热处理加热，利于开机，可移动车机电源模块的首推。Compact size, high compression ratio, gile heated by air, easy for start-up, the first option of mobile vehicle power supply.

推荐机型Engine Models Recommended

发起机型号查询	普遍工率(kW)Prime Power	备品输出功率kW)Standby Power
MTA11-G2	224	246
MTAA11-G3	282	310
